Suzuki M109R Air Ride Kit

Backyard Air Suspension & Innovations, LLC.

$529.00

Shipping calculated at checkout

Available Now!

Suzuki M109R Air Ride Kit



FITS: 2006-2021



Apply for 100 days same as cash for up to $5000 through Snap Financing, once we receive the approval from Snap we will contact you to discuss the parts you are looking to purchase.

Click here to apply

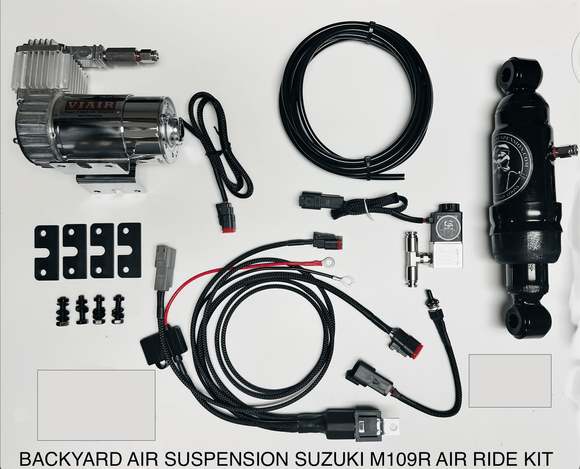

KIT INCLUDES:

* Complete kit comes pre-wired plug & play waterproof Deutsch plugs

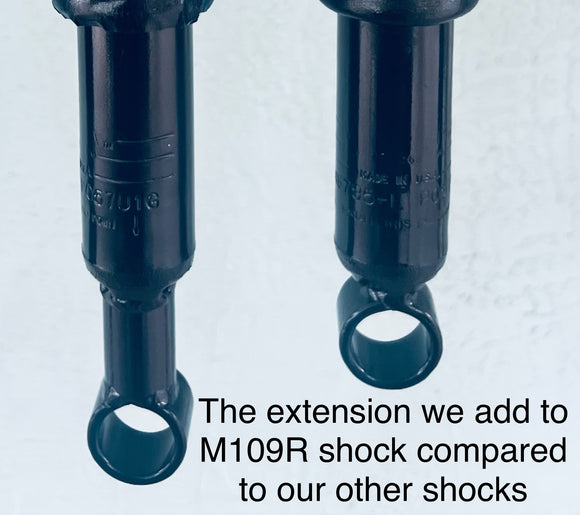

* One Air shock which is reinforced with stainless steel tig welding at eyelids, we replace the bushings with Polyurethane Bushings, we cut & remove the Monroe stock inlet air fitting & we tap the shock with 1/8" NPT thread for the removable 1/4" airline push to connect fitting

* 100C Viair compressor with push to connect fitting & plug & play waterproof plug

* 1/4" electric solenoid with push to connect fittings with plug & play waterproof plug

* Waterproof plug & play relay harness & momentary switch

* 10' DOT 1/4" Airline

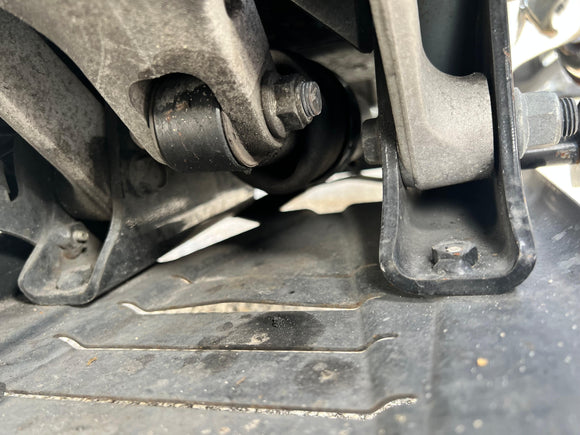

**REUSE YOUR STOCK BOLTS & NUTS TO MOUNT THE SHOCK**



Shock can be inflated or deflated as needed from 20 psi to 150 psi

Fully adjustable system

Shock maintains ride height up to 1100 lbs. of additional weight **not including the motorcycle.

Dimensions: Compressed   -  9.5"

                          Extended height - 14"

                          Travel  distance - 4.5"



* ONE YEAR WARRANTY ON NON-MODIFIED PARTS

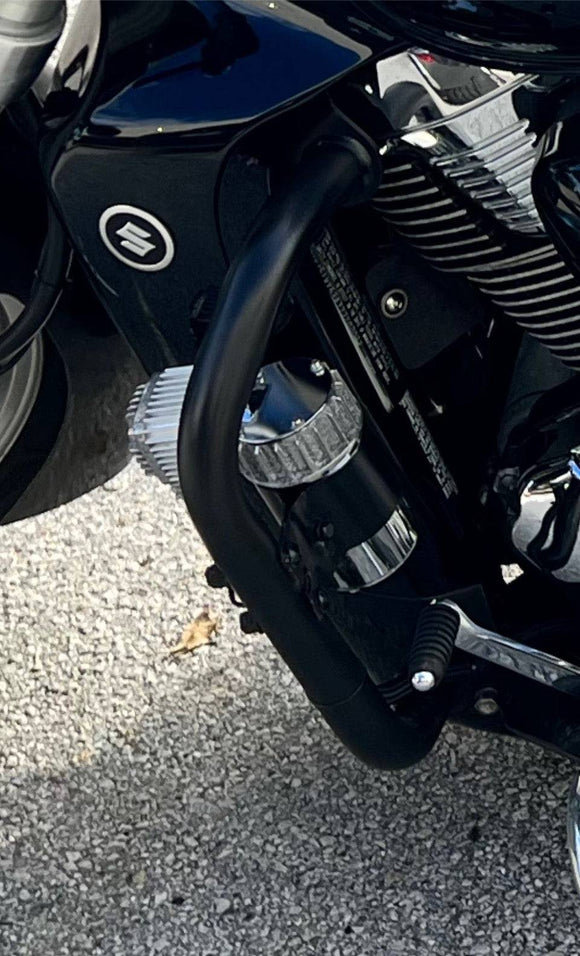

**WE RECOMMEND INSTALLING THE COMPRESSOR ON THE BOTTOM METAL PLATE UNDERNEATH THE BIKE BEHIND THE SHOCK AND IN FRONT OF THE REAR TIRE, OR ON THE CRASH BAR OR IF YOU HAVE SADDLEBAGS INSIDE WILL ALSO WORK. THE SOLENOID CAN GO BEHIND THE SIDECOVER. THE MOMENTARY SWITCH CAN BE INSTALLED ON THE SIDECOVER OR IGNITION PLATE**



DUE TO SHIPPING MATERIAL DELAYS, WE ARE EXPERIENCING DELAYS ON SHIPPING TIMES. WE DO THANK YOU FOR YOUR PATIENCE AT THIS TIME

Your order will be processed in the order received & ships out in 14-20 BUSINESS DAYS MON-FRI (SHIPPING DAYS DO NOT INCLUDE WEEKENDS/HOLIDAYS) from date of purchase, we will email you the tracking number/s once ready to ship out, please check spam for emails. On large orders (SUCH AS BAGGER KITS) not all packages will ship out on the same day. We will email you the tracking numbers as they are ready to ship out. Please allow your order to ship out in between the 14-20 BUSINESS DAYS MON-FRI ,from date of payment, again DUE TO SHIPPING SUPPLY DELAYS YOUR ORDER/S MAY BE DELAYED. Tracking number/s will be emailed once package/s are ready to ship out. We are a small business & take pride in providing quality parts to all of our customers in a timely manner. Unfortunately these delays are being felt throughout every industry.
