Harley V-Rod Air Ride Kit

$569.99

Shipping calculated at checkout

Style: Choose Chrome Compressor

Harley V-Rod Air Ride Kit

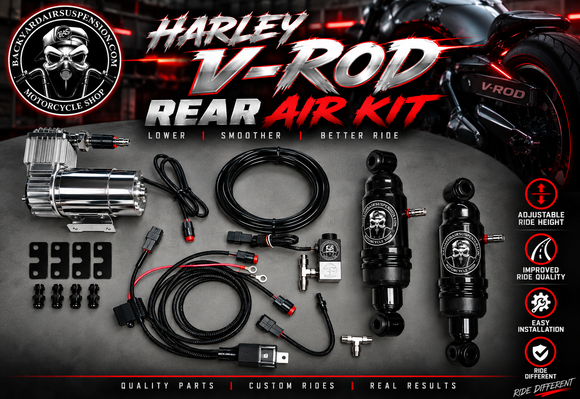

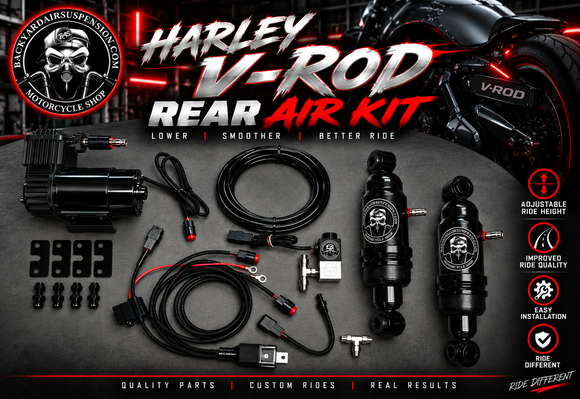

KIT INCLUDES:

* Complete kit comes pre-wired plug & play with waterproof Deutsch plugs

(unlike other companies where you would have to make your own wiring, solder or crimp your connections)

* Air shocks are reinforced with stainless steel tig welding at eyelids, we         replace the bushings with Polyurethane Bushings, we cut & remove the Monroe stock inlet air fittings & we tap the shocks with 1/8" NPT threads for the removable 1/4" airline push to connect fittings

* 100C Viair compressor with push to connect fitting & plug & play waterproof plug

* 1/4" electric solenoid with push to connect fittings & plug & play waterproof plug

* Waterproof plug & play relay harness & momentary switch

* Push to connect T-Fitting & 10' DOT 1/4" Airline

Shocks can be inflated or deflated as needed from 20 psi to 200 psi

Fully adjustable system

Shocks maintain ride height up to 1100 lbs. of additional weight **not including the motorcycle**

**We add 1-1/5" Tubing to bottom of shocks, so fender does not sit on the tire**

Dimensions: Compressed  -  11"

                          Extended height - 15.5"

                          Travel  distance - 4.5"

* ONE YEAR WARRANTY ON NON-MODIFIED PARTS



**WE RECOMMEND INSTALLING THE AIR COMPRESSOR, RELAY HARNESS & SOLENOID INSIDE THE AIR BOX, REUSE YOUR STOCK SHOCK BOLTS ON NEW YOUR NEW AIR SHOCKS, T-FITTING CAN BE INSTALLED UNDERNEATH THE SEAT, TO INSTALL THE MOMENTARY AIR RIDE SWITCH YOU CAN DRILL A 1/4" HOLE ON THE HORN COVER**
